Understanding solar photovoltaic (PV) technology is pivotal in navigating the renewable energy landscape of today. Solar PV systems harness the power of sunlight to generate electricity through the photovoltaic effect. A solar cell consists of two types of semiconductor materials sandwiched together, called p-type and n-type silicon. As photons hit the n-type semiconductor they emit electrons (photoelectric effect), resulting in a potential difference between the two semiconductor materials (and generating electricity). As the world increasingly pivots towards sustainable energy solutions, comprehending the workings, benefits, and applications of solar PV systems becomes ever more essential. From residential rooftops to vast solar farms, the versatility and efficiency of solar PV offer a promising avenue for both individuals and industries to embrace clean energy alternatives, ultimately contributing to a greener, more sustainable and energy-secure future.

Solar photovoltaic (PV) systems harness the sun's energy by employing the photovoltaic effect to convert sunlight into electricity. When sunlight strikes the solar panels, photons in the sunlight knock electrons free from atoms in the semiconductor material of the panels, generating a flow of electricity. This direct current (DC) electricity is then converted into alternating current (AC) electricity using inverters, making it compatible with the electrical grid and usable in homes and businesses. Systems can be roof-top mounted, which are generally non-solar tracking, or ground-mounted, which can track the sun's movement for optimal exposure and efficiency. Generated electricity can be used immediately, stored in batteries for later use, or exported to the grid, depending on system configuration and user preferences. Regular maintenance, such as cleaning panels and monitoring system performance, ensures optimal operation and longevity, allowing solar PV systems to reliably provide clean energy for decades. A typical solar PV plant process flow diagram is shown in Fig.1 below.

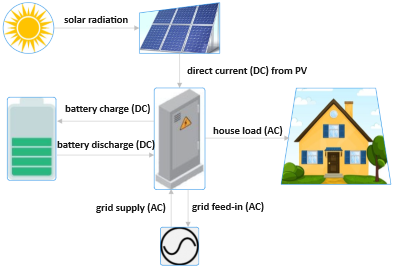

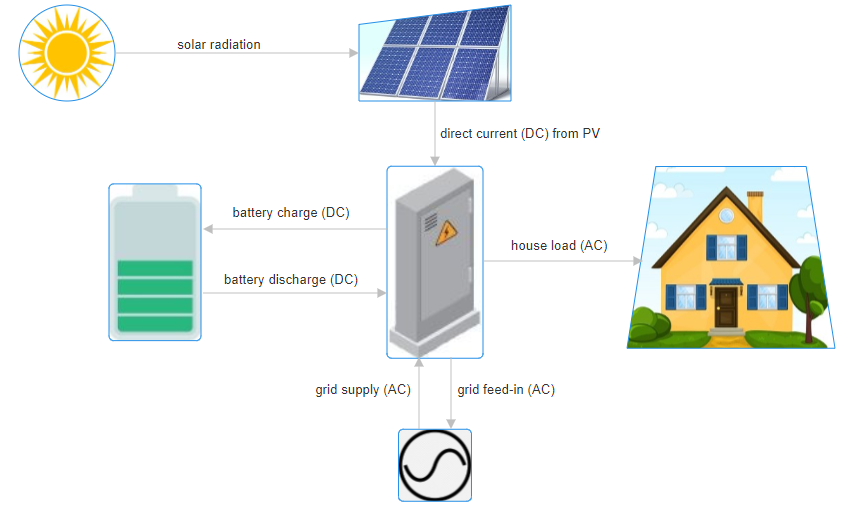

Figure 1. Typical process flow diagram of a solar PV plant.

Solar PV plants come in various types tailored to different needs and environments:

• Grid-tied systems, the most common type, connect to the utility grid, allowing users to feed excess electricity back to the grid and draw power when needed. These systems generally do not have battery backup and can use microinverters or string inverters.
• Off-grid systems operate independently, relying on battery storage to provide electricity when sunlight is unavailable. These systems generally use a string inverter.
• Hybrid systems combine the best of both worlds, incorporating battery storage while remaining grid-connected for added reliability.

Each system type offers unique benefits, catering to diverse energy requirements and geographical conditions, ultimately contributing to the widespread adoption of clean, renewable energy.

Solar PV tracking systems are advanced mechanisms designed to enhance the efficiency of solar panels by continually adjusting their orientation to follow the sun's trajectory across the sky. Unlike fixed-tilt systems, which are stationary and often miss optimal sun angles, tracking systems dynamically align the panels to maximize solar exposure throughout the year and/or day. This results in a significant increase in energy capture—up to 25-35% more compared to stationary systems. There are three main types of solar trackers:

• single-axis north-to-south - this rotates on one axis and follows the sun's seasonal north-south movement
• single-axis east-to-west - this rotates on one axis and follows the sun's daily east-west movement, and
• dual-axis, which adjust on both horizontal and vertical axes, providing even more precise alignment.

These systems, though more complex and costly than fixed installations, are especially beneficial in regions with high direct sunlight, optimizing power generation and improving the overall economic viability of solar energy projects.

Solar PV modules (panels), the building blocks of solar power systems, come in several types, each with distinct characteristics suited to various applications:

• Monocrystalline solar panels are made from single-crystal silicon, offering high efficiency.
• Polycrystalline panels are crafted from multiple silicon crystals, making them more affordable but slightly less efficient than monocrystalline panels.
• Thin-film solar panels, composed of materials like cadmium telluride (CdTe) or amorphous silicon (a-Si), are flexible and lightweight, making them suitable for non-standard installations or portable applications.
• Bifacial solar panels can capture sunlight from both sides, enhancing energy generation by reflecting light from the ground or nearby surfaces.

Each module type presents unique trade-offs in efficiency, cost, and versatility, allowing consumers to select the most appropriate option based on their specific needs and preferences.

The solar PV p-n junction is the fundamental component responsible for the photovoltaic effect, which enables solar panels to convert sunlight into electricity. This junction is formed by joining two layers of semiconductor material with differing electrical properties: p-type and n-type. In the p-type layer, there is an excess of positively charged "holes," while the n-type layer contains an excess of negatively charged electrons. When sunlight, composed of photons, strikes the semiconductor material, it transfers energy to the electrons in the atoms, freeing them from their atomic bonds. The resulting electron-hole pairs move towards the p-n junction due to the built-in electric field, creating a potential difference across the junction. This flow of electrons constitutes an electric current, generating electricity. The design and characteristics of the p-n junction are crucial for optimizing the efficiency and performance of solar PV cells, making it a fundamental aspect of solar energy technology.

Solar PV inverters play the central role in solar systems converting the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity that can be used in homes, businesses, or fed into the electrical grid. There are several types of solar PV inverters, each with its own advantages and applications:

• String inverters are the most common type of inverters used in residential and commercial solar installations. They connect multiple solar panels in series to a single inverter, converting the DC electricity from the entire string into AC electricity. String inverters are cost-effective and simple to install, but they can be affected by shading or panel mismatch issues.
• Microinverters are installed on each individual solar panel, converting the DC electricity directly at the panel level. This design maximizes energy harvest by allowing each panel to operate independently, overcoming shading or panel performance variations. Microinverters also provide detailed monitoring of each panel's performance.
• Power optimizers are installed at the panel level, similar to microinverters, but they do not convert DC to AC directly. Instead, they optimize the DC electricity generated by each panel before sending it to a central inverter. Power optimizers can mitigate shading and panel mismatch issues, enhancing overall system performance and reliability.
• Hybrid inverters integrate solar PV with energy storage systems, allowing users to store excess solar energy in batteries for later use. These inverters manage both solar PV and battery storage, optimizing energy usage and providing backup power during grid outages.

Choosing the right type of solar PV inverter depends on factors such as system size, shading, budget, and desired functionality. Each type offers unique benefits and features to maximize the efficiency and reliability of solar energy systems.

Solar PV inverters are the vital components in solar energy systems, tasked with converting the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity suitable for use in homes, businesses, or the electrical grid. Upon receiving the DC electricity from the solar panels, the inverter utilizes sophisticated electronic circuits to transform it into AC electricity, adjusting voltage and frequency to meet standard electrical requirements. Advanced inverters often incorporate maximum power point tracking (MPPT) algorithms, ensuring that the panels operate at their peak efficiency by continuously optimizing their output. Additionally, inverters synchronize the phase and frequency of the AC output with the grid, ensuring compatibility and seamless integration. Monitoring and communication features enable users to track system performance in real-time, facilitating maintenance and optimization. In essence, solar PV inverters play a crucial role in maximizing the energy yield and reliability of solar power systems.

Solar PV battery systems are integral components of off-grid and hybrid solar energy setups, storing excess electricity generated by solar panels for later use or backup power. Various battery types cater to diverse needs and applications within solar PV systems:

• Lead-acid batteries, such as flooded, sealed, or gel batteries, are cost-effective and widely used, offering reliable energy storage for residential and small-scale applications.
• Lithium-ion batteries, including lithium iron phosphate (LiFePO4) and lithium nickel manganese cobalt oxide (NMC), are gaining popularity due to their higher energy density, longer lifespan, and faster charging capabilities, making them ideal for both residential and commercial installations.
• Flow batteries, such as vanadium redox or zinc-bromine, provide scalable energy storage solutions for larger installations, offering high cycle life and the ability to discharge completely without affecting longevity.

Each battery type presents unique trade-offs in terms of cost, lifespan, energy density, and scalability, allowing users to select the most suitable option based on their specific requirements and budget constraints in solar PV systems.

Simulating and sizing solar (PV) plants is a crucial step in the design and implementation of sustainable energy solutions. By leveraging advanced computational models and simulation techniques, engineers, researchers, and now even enthusiasts can accurately predict the performance and optimize the sizing of solar PV plants. This process involves assessing various factors such as system type, solar irradiance, panel tracking & orientation, battery size and other system components to ensure maximum efficiency and cost-effectiveness. From small-scale residential arrays to large commercial projects, precise simulation and sizing methodologies play a pivotal role in harnessing the full potential of solar energy, facilitating informed decision-making, and driving the transition towards a cleaner, more sustainable energy future.





Process simulation tools are very effective and helpful at explaining the workings of complex systems, and even more importantly they empower users to make well-informed decisions. Try our solar PV plant simulator, just your geo coordinates are required to establish the correct solar irradiance data. For the rest we have created default settings for electricity consumption profiles, equipment sizes and efficiencies (all of which can be adjusted).

Our simulator allows for the creation and sharing of projects, so solar contractors can easily create projects and share them with their clients, who don't need to be registered unless they wish to save & share their own projects. The system is versatile and user-friendly.

• Project Controls (top bar) - to create projects (add a name in the dropdown, Enter and Save), to share a project (click Link to copy a link to your clipboard) and to delete a project (click Delete)
• Left Panel - displays all PV plant and unit controls, use these to set properties and generate results/reports

  Title bar icon controls:

  • Solar PV plant - returns to the solar PV system controls
  • - this opens the solar PV system process flow diagram
• Center Panel - shows the flow diagram (click on an icon to show the controls for the unit), and displays any results/reports

  Title bar icon controls:

  • - this opens the comments & notes column
• Right Panel - use this to add comments or make notes about a particular project

• Project Controls (top bar) - to create projects (just add a name in the drop-down, Enter and Save), to share projects (click Share and a link is copied to your clipboard) and to delete projects (just click Delete)
• Panel Controls (buttons under project controls) - these allow movement between Panels -> flow diagram, controls, result/reports & comments/notes
• Flow Diagram - shows the flow diagram (click on an icon to show the controls of any unit)
• Controls - shows the controls, use this to set properties and generate results/reports
• Results/Reports - shows the any generated results/reports
• Comments/Notes - use this to add comments or make notes about a particular project
